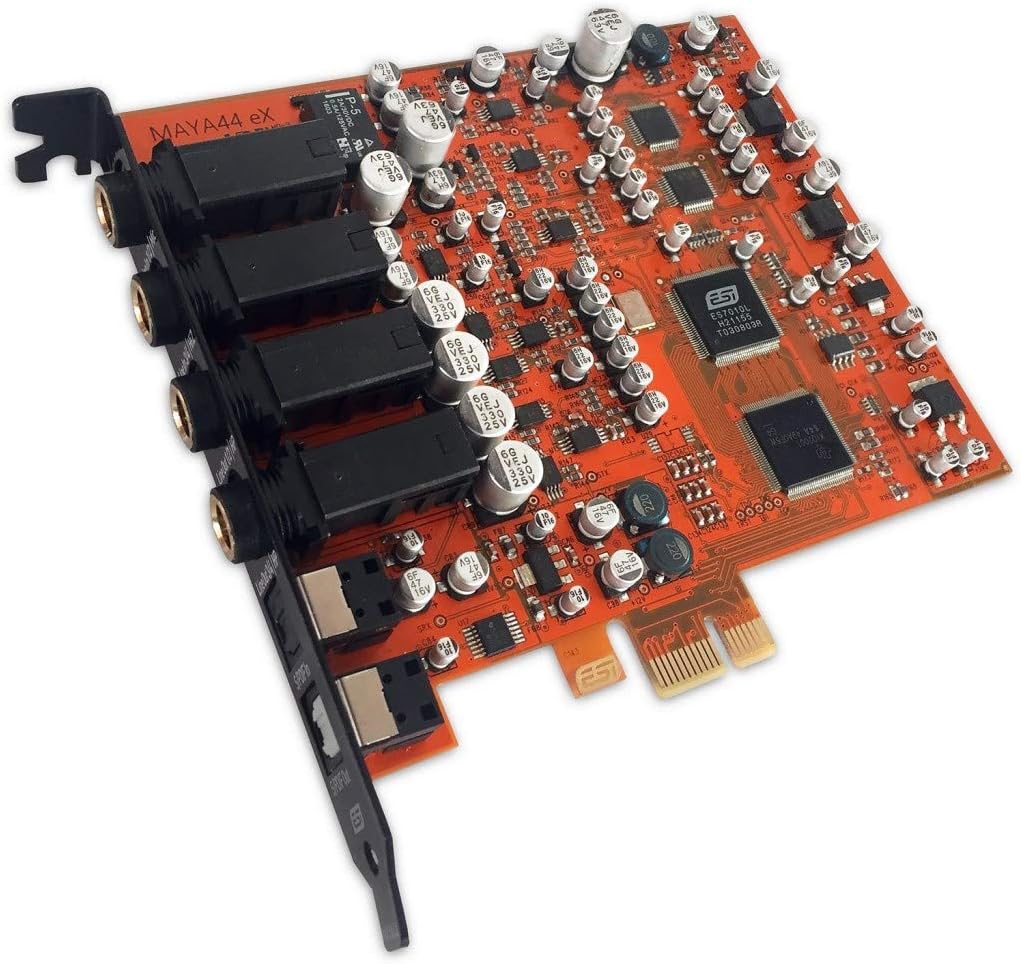

ESI Maya44 EX [PCIe Audio Interface]

4-in-4 out PCIe audio interface for 24bit/96kHz The MAYA44 eX is a 4 input/output PCIe audio interface that supports 24bit/96kHz. It provides powerful, high-definition functionality from home recording to professional sites. Two stereo line input/output, microphone input with +48V phantom power and preamplifier, Hi-Z input for connecting guitars, and other optical input and output. Equipped with a headphone output terminal, this audio interface is ideal for music production and multimedia content production. 102 dB A/D converter compatible with 24 bit/96 kHz. 108 dB D/A converter that supports 24 bit/96 kHz. 4 channels simultaneous input and 4 channels output simultaneously. Microphone preamp with +48V phantom power supply. Hi-Z input terminal that can directly input guitars. S/PDIF optical input and output terminals Full Duplex recording. Headphone terminal: The latest PCIe interface technology by ESI. Optimized for latest audio streaming and recording playback applications. Fully extended DirectWIRE support virtual channels. Low latency EWDM driver: MME, WDM, DirectSound and ASIO 2.0 compatible. Supports Windows Vista to 10 (32/64bit), Mac OS X Specifications: ■Analog Sample rate 32, 44.1, 48, 88.2, 96 kHz Recording & Playback Analog input Terminal: 4 channels, analog input 1/4" TRS (stereo) jack (line in 1 and 2) common with microphone input 1/4" TRS (stereo) jack (line in 3 and 4) common with Hi-Z input Peak Level: 0dBFS @ +6dBV Proromable Gain: -48dB ~ +24dB (1dB step size) Impedance: 10K Ω Analog output Terminal: 4 channels analog line output 1/4" TRS (stereo) jack Peak Level: +6dBV @ 0dBFS Attenuation: -48dB ~ +0dB (1dB step size) Impedance: 33 Ω (line out 1 and 2, headphone out), 33 Ω (line out 3 and 4, headphone out) Microphone preamp Microphone Preamp Gain: +21dB Peak Level: 0dBFS @ 246mV +48V Phantom Power Impedance: 3.3K Ω Hi-Z / Guitar input Impedance: Min. 330K Ω Headphone amplifier Load impedance range: 32-300 Ω (for best performance) Output: 125mW @ 32 Ω per channel ■Digital Sample rate 32, 44.1, 48, 96 kHz Input & Output A/D converter S/N ratio: 102dBA (0dB @ fs=48kHz) Dynamic Range: 102 dBA THD: -95dB (1kHz, -1dBFS) Interchannel isolation: 90dB D/A converter. S/N ratio: 108dBA (0dB @ fs=48kHz) Dynamic Range: 108dBA THD: -97dB (1kHz, 0dBFS) Interchannel isolation: 100dB Digital input Terminal: optical TOSlink Format: EC-60958 Consumer (S/PDIF) 3) Resolution: 24-Bit Digital output: Terminal: optical TOSlink Format: IEC-60958 Consumer (S/PDIF) Resolution: 24-Bit Digital pass-through

• The MAYA44 eX is a 4 input/output PCIe audio interface that supports 24bit/96kHz
• It provides powerful, high-definition functionality from home recording to professional sites
• 102dB A/D converter for 24bit/96kHz
• 4 channels simultaneous input and 4 channels simultaneously output
• Hi-Z input terminals that can directly input guitars
